3N-5N Titanium Diboride Nanoparticles Factory Supply
-
Quality First
-
Competitive Price
-
First-class Production Line
-
Factory Origin
-
Customized Services
Anhui Fitech Material Co.,Ltd specializes in Nano Boride more than 3 years, with rich experience, high quality, and competitive price. As a professional manufacturer and supplier, we have our own professional technology team to meet any of your requirements in quality and technology. If you want to buy nano composites, metal nanoparticles, alloy nanoparticles, oxide nanoparticles, rare earth oxide nanoparticles, or look for price quotation, please contact judy@fitechem.com
Features

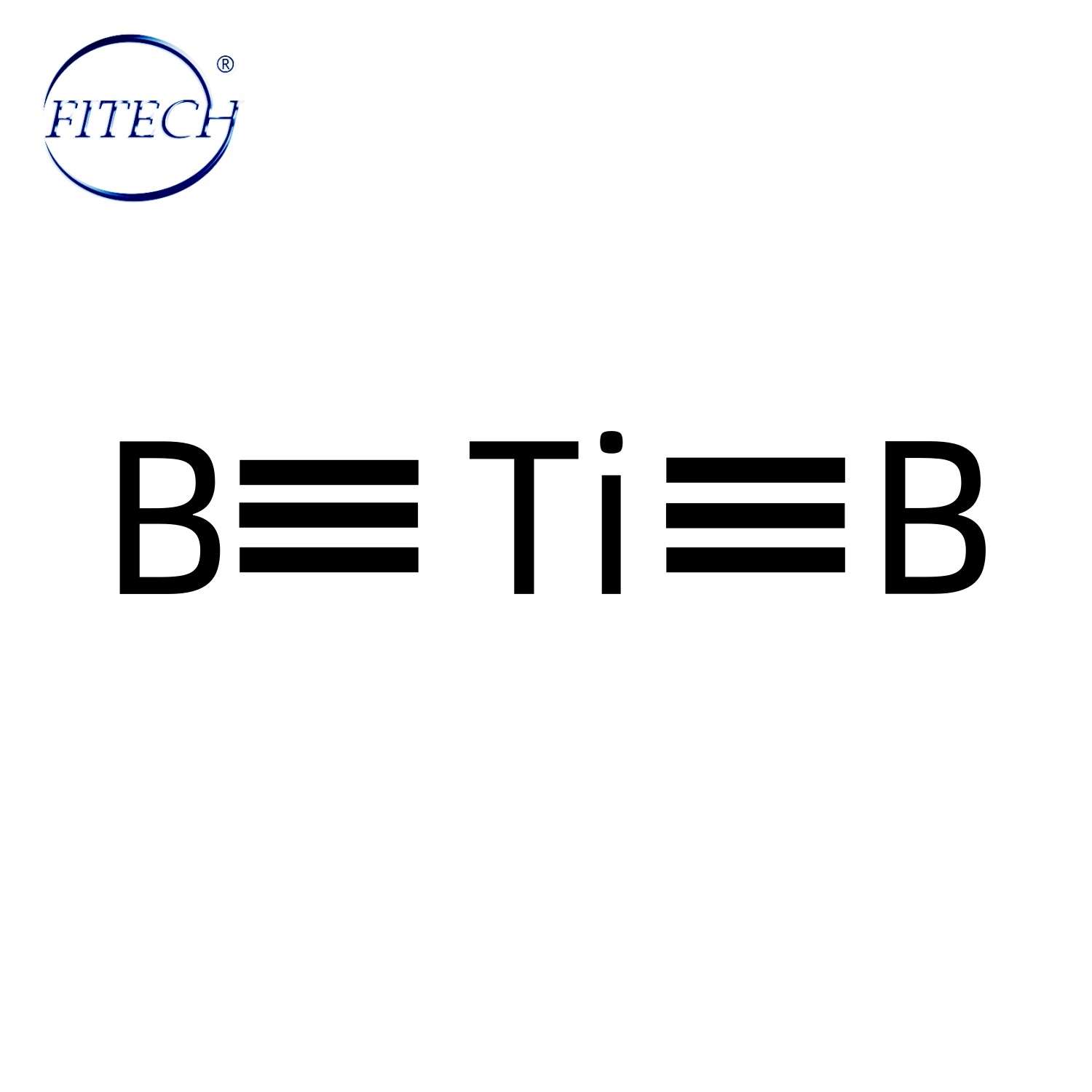

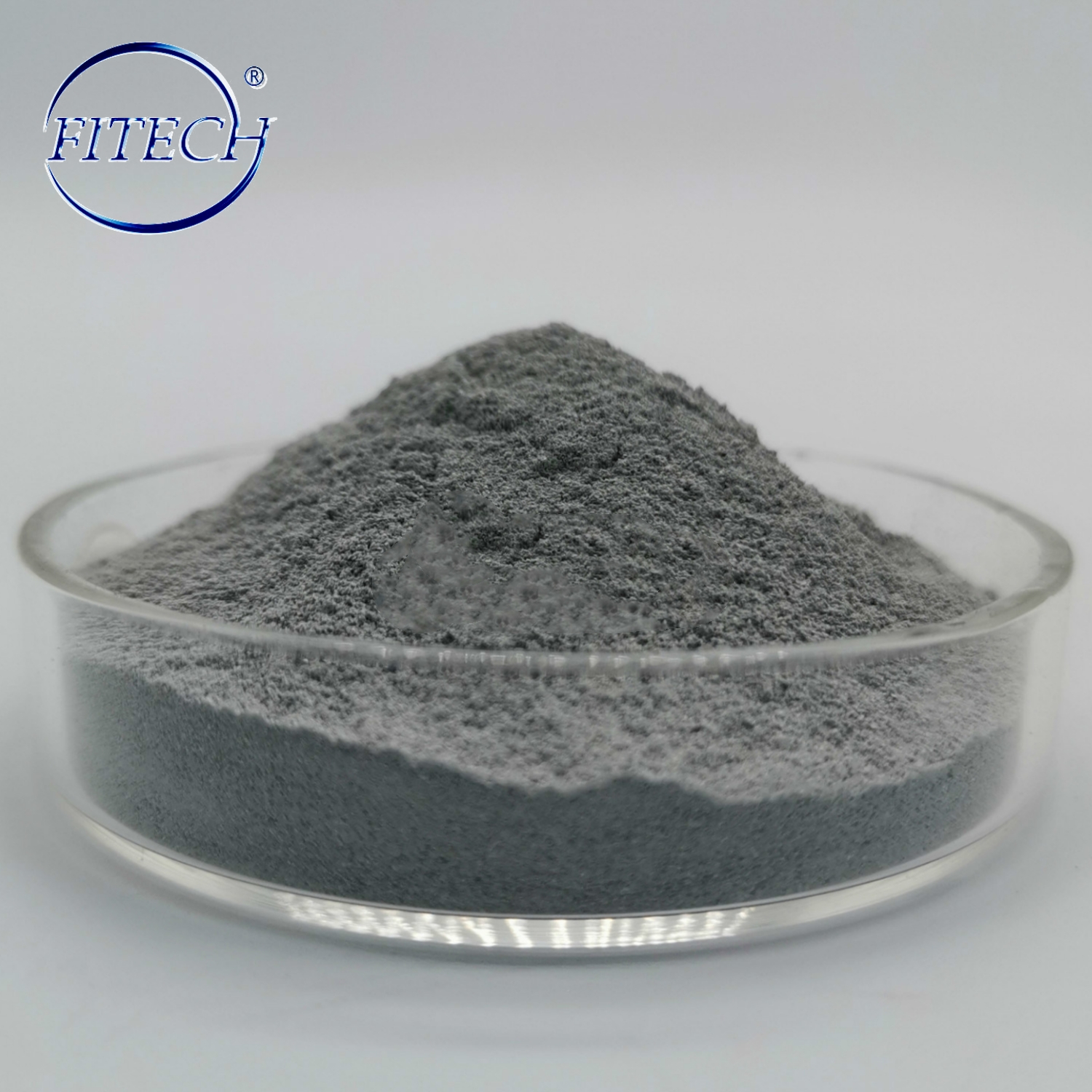

Nano titanium diboride powder, ultrafine titanium diboride powder prepared by variable current laser ion beam vapor phase method, high purity, small particle size, uniform distribution, large specific surface area, high surface activity, ultrafine titanium boride ceramic powder is a grey-black powder, powder particles have a complete hexagonal crystal structure. Its chemical molecular formula is TiB2, molecular weight 69.52, density 4.52 g/cm3, melting point 2980 ℃, microhardness 34Gpa, thermal conductivity 25J/m.s.k, coefficient of thermal expansion 8.1×10-6m/m.k, electrical resistivity 14.4μΩ.cm. titanium diboride powder has a high melting point, high hardness, wear-resistant, resistant to acid and alkali, excellent electrical conductivity, strong thermal conductivity It has good chemical stability and resistance to thermal vibration, high oxidation resistance temperature, can resist oxidation below 1100℃, and its products have high strength and toughness.
Wear resistance, acid and alkali resistance, strong electrical and thermal conductivity, small coefficient of thermal expansion, excellent chemical stability and thermal resistance. Titanium diboride has an oxidation resistance temperature of up to 1000 ° C in air and is stable in HCl and HF acids. Hexagonal columnar single crystal. The fiber length is hundreds of microns, and the fiber diameter is 0.2 ~ 0.5μm. High stability
Specification
| Type | Model | APS（um） | Purity （%） |
SSA（m2/g） | Bulk Density（g/cm3） | Morphology | Color |
| Nano- | ZY-TiB2-001 | 50nm | >99.5 | 45.16 | 0.09 | hexagonal | black |
| Sub-micron | ZY-TiB2-002 | 1~3 | >99.5 | 5.42 | 2.12 | hexagonal | black |
Applications
1.Titanium diboride powder is one of the main raw materials for vacuum coating conductive evaporation boat, composite ceramic materials. It can be used as an important component of multivariate composite materials, and TiC, TiN, SiC and other materials to form composite materials, to make a variety of high-temperature resistant parts and functional parts, such as high-temperature crucibles, engine parts, etc..
2. One of the good materials for making armour protection materials, ceramic cutting tools and moulds.
3. Making finishing tools, wire drawing moulds, extrusion moulds, sand blasting nozzles, sealing elements, etc.
4. Aluminium electrolytic tank cathode coating material. Due to the good wettability of TiB2 with metallic aluminium liquid, using TiB2 as the cathode coating material of aluminium electrolytic tank can make the power consumption of aluminium electrolytic tank lower and the life of electrolytic tank longer.
5. It is made into PTC heating ceramic material and flexible PTC material, which has the characteristics of power-saving, reliable, easy processing and moulding, etc. It is a kind of newer high-tech product of all kinds of electric heating materials. Conductive ceramic materials.
Storage conditions
Sealed at room temperature, cool, ventilated and dry, packed in iron drums, the lid of the drums must be tight and firm.
