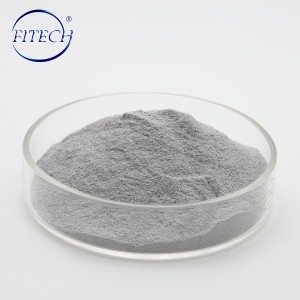

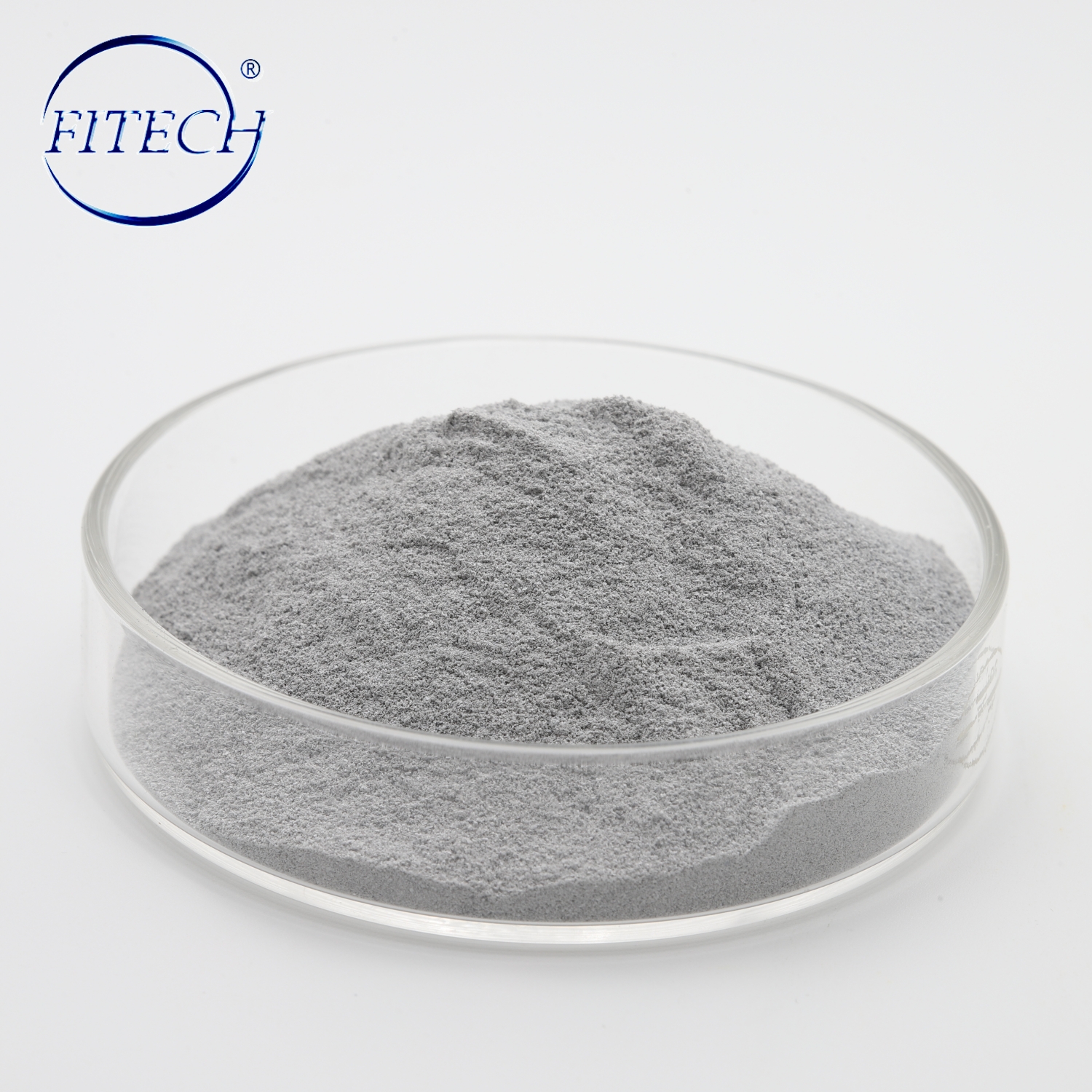

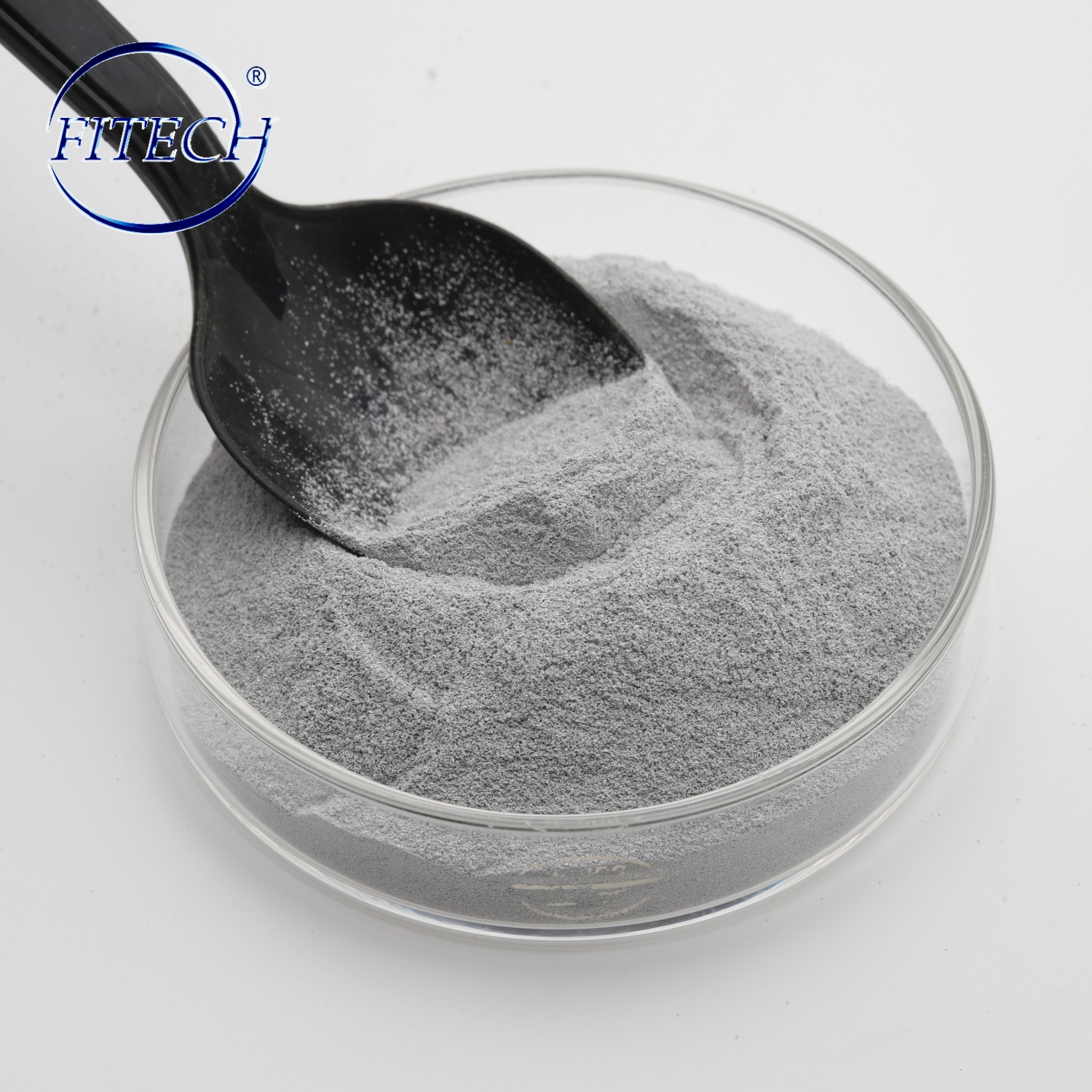

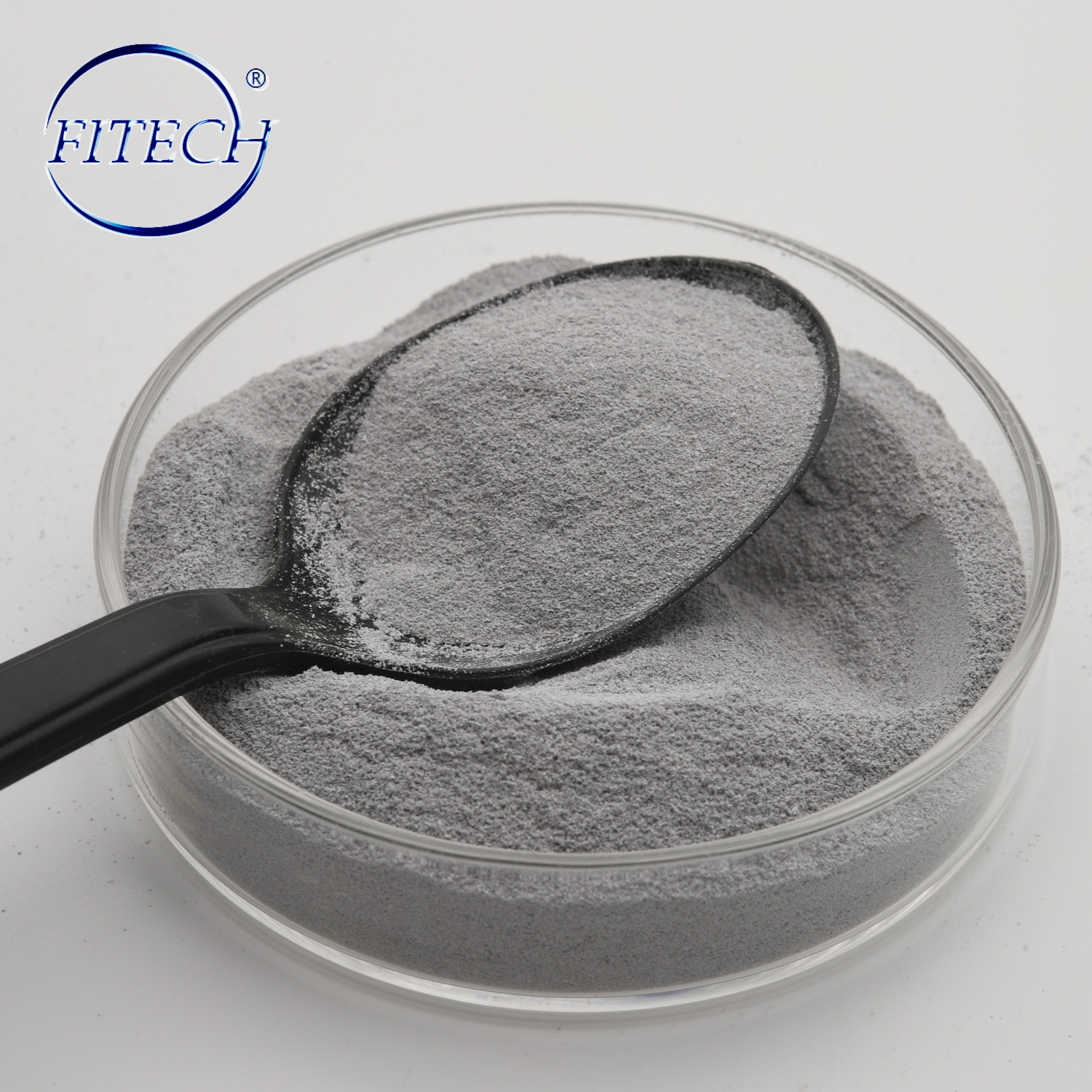

Aluminium Nitride Nano Powder 99.9% metals basis,50nm
-
Quality First
-
Competitive Price
-
First-class Production Line
-
Factory Origin
-
Customized Services
Anhui Fitech Material Co.,Ltd specializes in Nano Nitride more than 5 years, with rich experience, high quality, and competitive price. As a professional manufacturer and supplier, we have our own professional technology team to meet any of your requirements in quality and technology. If you want to buy nano composites, metal nanoparticles, alloy nanoparticles, oxide nanoparticles, rare earth oxide nanoparticles, or look for price quotation, please contact Judy@fitechem.com
Features
Nano aluminum nitride powder, ultra-fine aluminum nitride powder prepared by variable current laser ion beam gas phase method, high purity, small particle size, large specific surface area, high surface activity, through the surface modification of the powder, does not occur hydrolysis reaction, oxygen content is very low (<0.1%), insulation and thermal conductivity effect is very obvious.
It is a good heat-resistant impact material, strong resistance to molten metal erosion, and is an ideal crucible material for melting and casting pure iron, aluminum or aluminum alloy; High purity aluminum nitride powder has excellent electrical insulation and good dielectric properties. Nanometer aluminum nitride has good injection molding properties. Used for composite materials, good matching with semiconductor silicon, good interface compatibility, can improve the mechanical properties and thermal conductivity and dielectric properties of composite materials.
Specification
|
Model |
APS（nm） |
Purity（%） |
Specific surface area（m2/g） |
Volume density（g/cm3） |
Density（g/cm3） |
Crystal form |
Color |
|
ZY-N-001 |
40 |
>99.99 |
70 |
0.15 |
3.5 |
cube |
gray |
Applications
1, nano aluminum nitride powder, ultra-fine aluminum nitride powder used in the manufacture of integrated circuit board, electronic devices, optical devices, radiators, high temperature crucible preparation of metal and polymer based composite materials, especially in the high temperature sealing adhesive and electronic packaging materials to improve the heat dissipation performance and strength characteristics of the material, has a good application prospect, can replace the current import of high purity aluminum nitride powder;
2, nano aluminum nitride powder, ultra-fine aluminum nitride powder applied to thermal conductive silica gel and thermal epoxy resin high thermal conductive filler: with the high purity aluminum nitride powder produced by our company to prepare high thermal conductive silica gel, it has good thermal conductivity, good super electrical insulation, wide electrical insulation and use temperature (working temperature 80-250℃), low consistency and good construction performance. Products have reached or exceeded imported products, because it can replace similar imported products and applied to the heat transfer medium of electronic devices, improve work efficiency, is a good high thermal conductivity filler. Such as CPU and radiator gap, high-power triode, thyristor, diode, heat transfer medium in contact with the substrate. Nano thermal paste is to fill the gap between the IC or transistor and the heat sink, increase the contact area between them, to achieve better heat dissipation effect;
3, nano aluminum nitride powder, ultra-fine aluminum nitride powder used in nano lubricating oil and anti-wear agent: The modified nano-aluminum nitride ceramic particles added in the nano-ceramic oil are activated with the lubricating oil acting on the metal surface of the friction pair inside the engine, under the action of high temperature and extreme pressure, and firmly embedded into the metal surface dents and microholes, repair the damaged surface, and form ultra-fine aluminum nitride powder nano-ceramic protective film.
4, the application of high thermal conductivity plastics: the modified nano ultrafine aluminum nitride powder can greatly improve the thermal conductivity of plastics. By adding the experimental product to the plastic at 1-3%, the thermal conductivity of the plastic can be increased from the original 0.3 to 3, and the thermal conductivity has been increased by more than 10 times. At present, it is mainly used in PVC plastics, polyurethane plastics, PA plastics, functional plastics, etc.
5, nano-aluminum nitride powder in other applications: ultrafine aluminum nitride powder can be used in melting non-ferrous metals and semiconductor materials gallium arsenide crucible, evaporation boat, thermocouple protection tube, high temperature insulation, microwave dielectric materials, high temperature and corrosion resistant structural ceramics and transparent high purity aluminum nitride microwave ceramic products.
Storage Conditions
Damp reunion will affect its dispersion performance and using effects, therefore, this product should be sealed in vacuum and stored in cool and dry room and it should not be exposure to air. In addition, the product should be avoided under stress.
Exhibition Show
Factory & Transportation
FAQs
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
