    High Temperature Alloy Tantalum Capillary Tube 99.95%

    Short Description:

    • Model Number:TA1
    • Application:biomedical, aerospace,
    • Shape:Round Tube
    • Material:Tantalum
    • Dimensions:O.D: 0.20~100mm Wall thickness: 0.05~10mm
    • Chemical Composition:Ta(99.95%min)
    • Density:16.65g/cm3
    • Surface::Bright
    • State:Annealling
    • Boiling Point:5425
    • Melting Point:3017
    • Supply Ability:5000 Kilogram/Kilograms per Week
    • Packaging Details:Wooden Case
    • Port:Shanghai
    • Lead Time:15

  • CAS No.: 7440-25-7
  • Molecular Formula: Ta
  • Quality Standard: 99.95%
  • Packing: 25kg/bag or as request
  • Minimum Order: Depends on your requirement
  • USD$0.00
    • Quality First

      Quality First

    • Competitive Price

      Competitive Price

    • First-class Production Line

      First-class Production Line

    • Factory Origin

      Factory Origin

    • Customized Services

      Customized Services

    Anhui Fitech

    Anhui Fitech Material Co.,Ltd  specializes in Tantalum Materials more than 10 years, with rich experience, high quality, and competitive price. As a professional manufacturer and supplier, we have our own professional technology team to meet any of your requirements in quality and technology. If you want to buy Non-ferrous, Metallurgy, Chemical Raw Materials or look for price quotation, or look for price quotation, please contact info@fitechem.com.

    Specification (% )

    Product Description

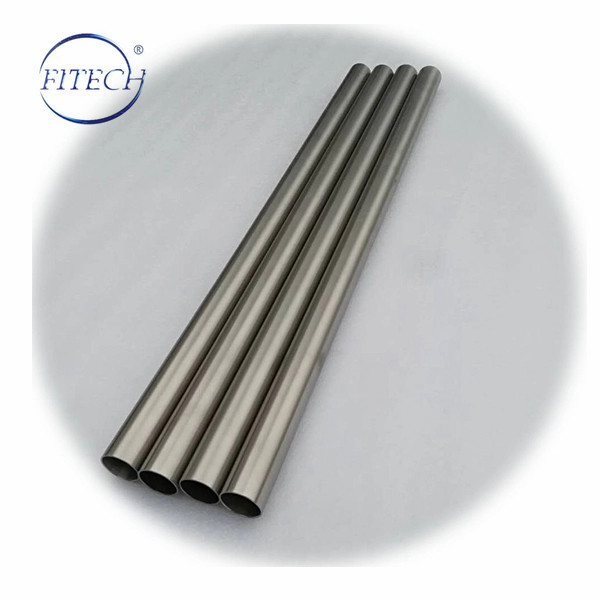

    High Temperature Alloy Tantalum Capillary Tube 99.95%

    Ta&Ta-alloy (such as Ta-2.5W, Ta-10W, Ta-40Nb etc) tube can be used for high-temperature, chemical and atomic industry due to its high melting point, anti-corrosion, good cold workability and other characteristics.It is mainly used to produce reaction container during chemical process , heat exchanger, pipeline, condensing apparatus, bayonet heater, spiral wire, U-tube, thermocouple plus protecting tube and liquid metal container and tube,ect.

    Product Name Tantalum Tube
    Material Composition RO5200,Ta1, RO5252(Ta-2.5W),RO5255(Ta-10W)
    Purity ≥99.95%
    Specifications O.D: 0.20~100mm    Wall thickness: 0.05~10mm
    The tolerance we could meet:
    Out diameter: ±0.003mm  Wall thickness: ±0.005mm



    Chemical composition, Max
    Grade Main components Impurities Composition, Max
    Ta Nb Fe Si Ni W Mo Ti O C H N
    Ta1 (R05200) reminder 0.1 0.01 0.005 0.01 0.05 0.02 0.01 0.015 0.01 0.0015 0.01
    Ta2(R05400) reminder 0.1 0.01 0.005 0.01 0.05 0.02 0.01 0.03 0.01 0.0015 0.01
    Ta2.5W(R05252) reminder 0.5 0.1 0.005 0.01 2-3.5 0.02 0.01 0.015 0.01 0.0015 0.01
    Ta10W(R05255) reminder 0.1 0.01 0.005 0.01 9-10 0.02 0.01 0.015 0.01 0.0015 0.01
    TaNb35(R05240) reminder 35.0-42.0 0.01 0.005 0.01 0.05 0.02 0.01 0.02 0.01 0.0015 0.01
    TaNb3 reminder <3.5 0.03 0.03 0.005 0.04 0.03 0.005 0.02 0.01 0.0015 0.01
    TaNb20 reminder 17.0~23.0 0.03 0.03 0.005 0.04 0.03 0.005 0.02 0.01 0.0015 0.01
    Special requirements to be agreed upon seller and buyer
    62874feddae30-!j.webp_副本
    62874feddae30-!j.webp_副本
    62874feddae30-!j.webp_副本
    test_pro_01

    Applications

    Application:

    Tantalum tube is largely applied to produce tantalum response vessel, tantalum heat exchangers(shell & tube heat exchanger), tantalum pipe line(piping or channel), tantalum condenser, tantalum agitator, tantalum cooler, tantalum boiler, tantalum bayonet heater, tantalum spiral (helical) coil, U-tube heat exchanger or "U" tube bundle heat exchanger during the substance sector for condensing, re-boiling, preheating and cooling of nitric acid, sulfuric acid, hydrochloric acid, formic acid and combinations of those acids with a great deal of other chemicals.
    Tantalum tube can be applied in fluid material tanks along with other glass-lined containers, tantalum thermo few and tantalum thermocouple safeguard sheaths, tantalum thermo well, tantalum emitter, tantalum sleeve, tantalum plasma spray focus on and tantalum tubular sputtering target.

    Exhibition Show

    pro_exhi

    Packing & Transportation

    transport
    transport2

    FAQs

    Q: Are you trading company or manufacturer ?
    A: We are factory.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
    quantity.

    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

    Certificate

    certificate1
    certificate3
    ISO 9001
    ISO 14001
    ISO 45001
    index_cer3
    certificate4
    certificate5
    certificate6
    certificate7
    certificate8
    certificate9
    certificate10
