    Molybdenum silicide Nanoparticles For Integrated electrode film and high temperature oxidation resistant coating

    Short Description:

    • MW: 152.11
    • EINECS: 235-231-8
    • Melting point: 1930°C
    • Density: 6.31 g/mL at 25 °C(lit.)
    • Specific Gravity: 6.31
    • ACGIH: TWA 10 mg/m3; TWA 3 mg/m3
    • NIOSH: IDLH 5000 mg/m3

  • CAS No.: 12136-78-6
  • Molecular Formula: MoSi2
  • Quality Standard: 99.9%
  • Minimum Order: Depends on your requirement
  • USD$0.00
    • Quality First

      Quality First

    • Competitive Price

      Competitive Price

    • First-class Production Line

      First-class Production Line

    • Factory Origin

      Factory Origin

    • Customized Services

      Customized Services

    Anhui Fitech Material Co.,Ltd  specializes in Nano Silicide more than 3 years, with rich experience, high quality, and competitive price. As a professional manufacturer and supplier, we have our own professional technology team to meet any of your requirements in quality and technology. If you want to buy nano composites, metal nanoparticles, alloy nanoparticles, oxide nanoparticles, rare earth oxide nanoparticles, or look for price quotation, please contact judy@fitechem.com

    00company3

    Features

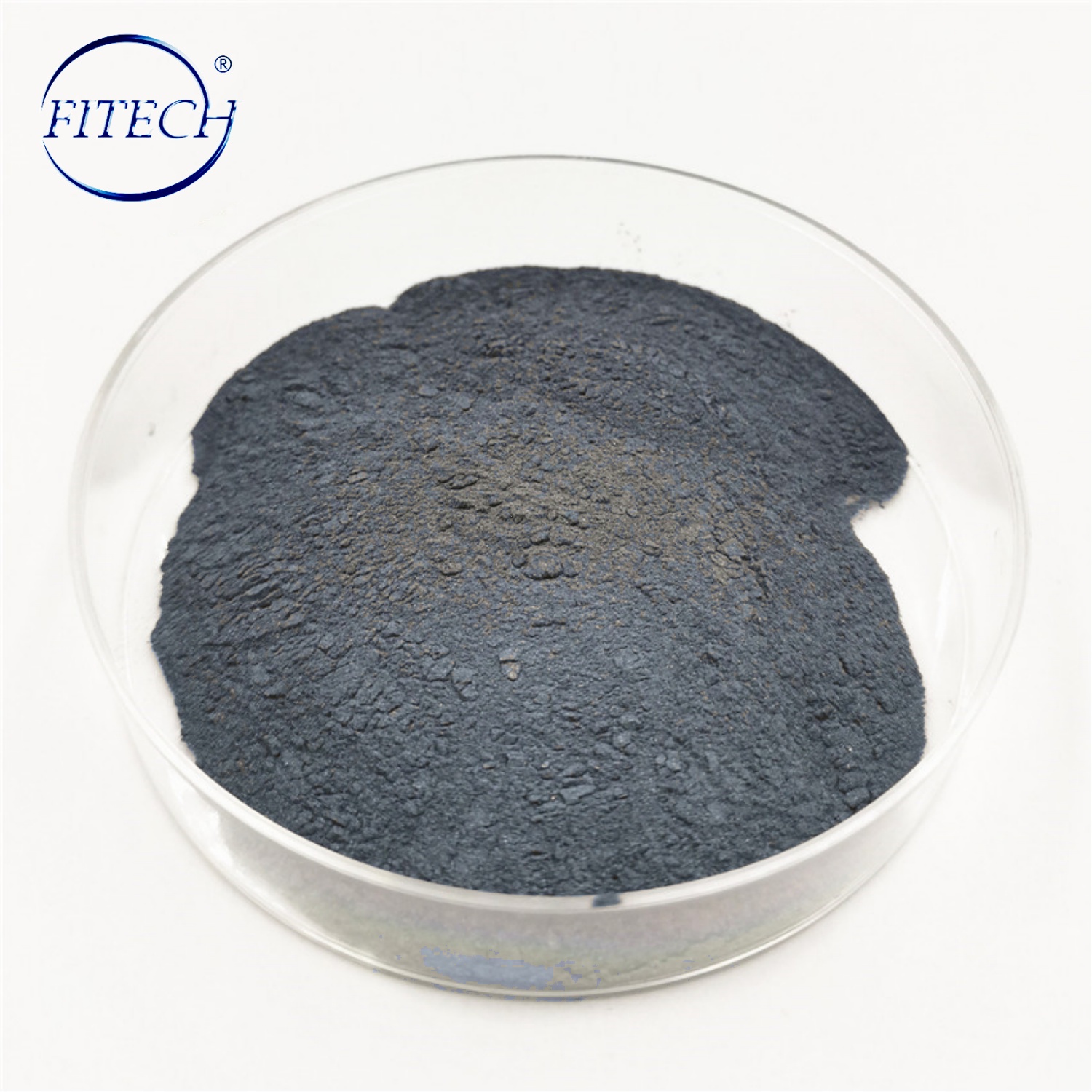

    Gray black powder, density 6.28g/cubic cm, melting point 2030 degrees, molybdenum disilicide used in high temperature anti-oxidation coating materials, electric heating elements, integrated electrode films, structural materials, composite reinforcement, wear-resistant materials, structural ceramic connection materials and other fields.

    Specification

    Type Model APS(um) Purity
    (%)
    SSA(m2/g) Volume density(g/cm3)

    Crystal

    form

    Color
    Sub-micron ZY-MoSi2-001 <1.0 99.5 24.24 4.21 cube black
    Ultra fine ZY-MoSi2-002 1-3um 99.5 17.67 4.56 cube greyish black
     Spray Grade ZY-MoSi2-003 20-40 99.5 4.95 4.87 sphere greyish black
    test_pro_01

    Applications

    1. Energy chemical industry: electric heating elements, high temperature heat exchangers for atomic reactor devices, gas burners, high temperature thermocouples and their protective tubes, melting vessels crucible.
    2. Microelectronics industry: MoSi2 and some other refractory metal silicides Ti5Si3, WSi2, TaSi2 are important candidate materials for large-scale integrated circuit gate and interconnect films.
    3. Aerospace industry: as a high temperature antioxidant coating material has been widely and deeply studied and applied. Especially as a turbine engine components, such as blades, impellers, burners, tail nozzle and sealing device materials.

    Storage conditions
    This product is vacuum-packed, should be sealed and stored in a dry, cool environment, should not be exposed to air for a long time, to prevent moisture agglomeration, affecting the dispersion performance and use of the effect.
