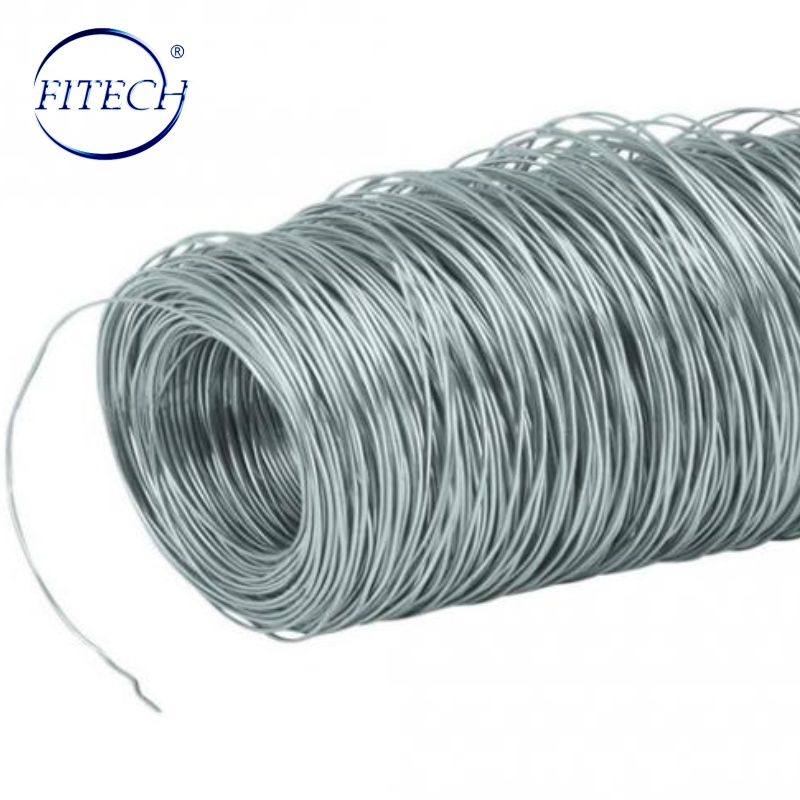

    Tungsten Wire Tungsten Filament for Vacuum Coating

    Short Description:

    • Atomic number: 74
    • Atomic weight: 183.85
    • Density: 19.254 g/cm3
    • Melting point: 3410°C (+ 20°C)
    • Boiling point: 5900°C
    • Specific heat: 0.14 kJ/kg x K at 20°C
    • Latent heat of fusion: 209 kJ/kg (estimated)
    • Thermal conductivity: 129 W/m x K at 20°C
    • Heat of evaporation: 444 J/g
    • Resistivity: 5.5 μΩ/cm at 20°C
    • Resistivity temperature coefficient: 0.00482 Ω/ΩK
    • Superconductivity temperature: 0.016 K

  • CAS No.: 7440-33-7
  • Molecular Formula: W
  • Quality Standard: 99.95%, 99.92%
  • Minimum Order: Depends on your requirement
  • USD$0.00

    Out of Stock
    • Quality First

      Quality First

    • Competitive Price

      Competitive Price

    • First-class Production Line

      First-class Production Line

    • Factory Origin

      Factory Origin

    • Customized Services

      Customized Services

    Anhui Fitech

    Anhui Fitech Material Co.,Ltd  specializes in Nano alloy more than 3 years, with rich experience, high quality, and competitive price. As a professional manufacturer and supplier, we have our own professional technology team to meet any of your requirements in quality and technology. If you want to buy nano composites, metal nanoparticles, alloy nanoparticles, oxide nanoparticles, rare earth oxide nanoparticles, or look for price quotation, please contact info@fitechem.com

    Specification (% )

    Features

    The surface of the tungsten wire is coated with graphite milk, which is more uniform black, and the graphite milk is metallic luster when removed.

    Model

    W Content

    Impurity element content

    Total Content

    Content per element

    ZY-WAL1、ZY-WAL2

    ≥99.95%

    ≤0.05%

    ≤0.01%

    ZY-W1

    ≥99.95%

    ≤0.05%

    ≤0.01%

    ZY-W2

    ≥99.92%

    ≤0.08%

    ≤0.01%

    Note: Ka is not included as impurity content

    Specifications and common difference

    Diameter

    (μm)

    Weight

    (mg/200mm)

    200mm

    Thread weight deviation

    (%)

    Diameter deviation (%)
    Grade 0 Grade Ⅰ Grade Ⅱ Grade Ⅰ Grade Ⅱ
    8<d≤14 0.19<p≤0.59 ±3.0 ±4.0 ±5.0
    14<d≤18 0.59<p≤0.98 ±2.5 ±3.0 ±4.0
    18<d≤40 0.98<p≤4.85 ±2.0 ±2.5 ±3.0
    40<d≤80 4.85<p≤19.39 ±1.5 ±2.0 ±2.5
    80<d≤300 19.39<p≤272.71 ±1.0 ±1.5 ±2.0
    300<d≤350 272.71<p≤371.18  — ±1.0 ±1.5
    350<d≤500 ±1.5 ±2.0
    d>500 ±1.0 ±1.5



    钨丝
    钨丝2
    钨丝3
    test_pro_01

    Applications

    Application

    - Manufacture electric light sources and electric vacuum parts

    - Used as high temperature heating element and high temperature structural parts

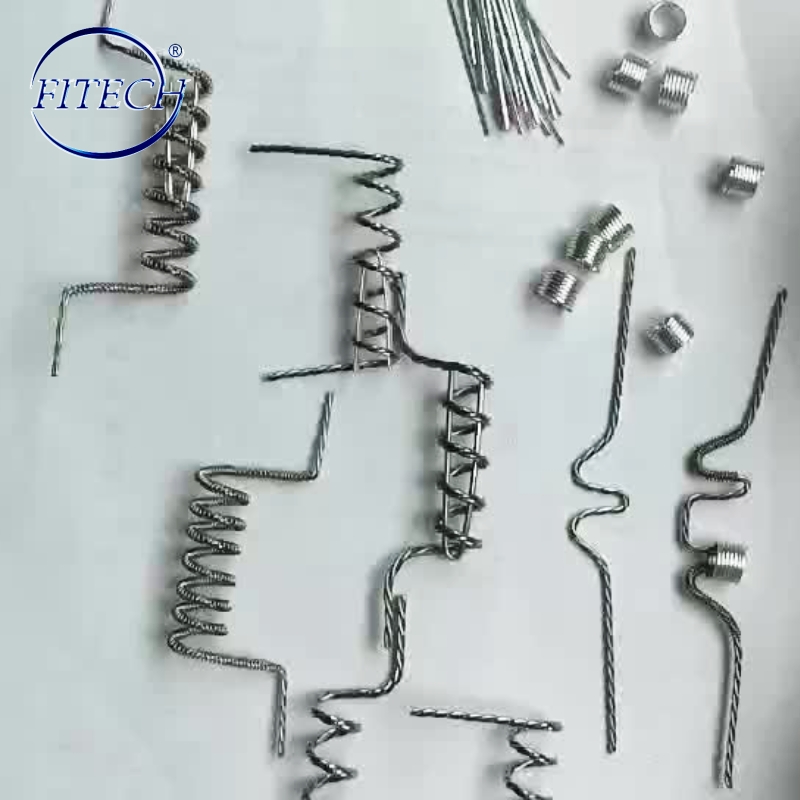

    - Used to make tungsten spirals for vacuum evaporation
